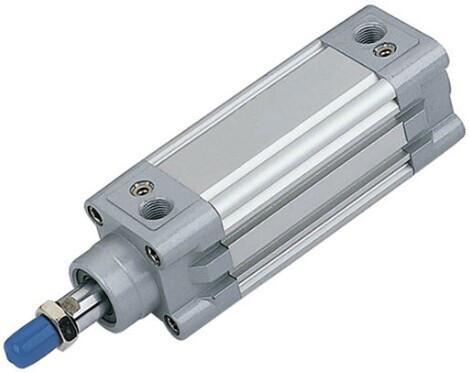

ISO6431 DNC Pneumatic Cylinders

Name: ISO6431 DNC Pneumatic Cylinders
Brand: XINYAN
Price: 1 USD

Buy cheap ISO6431 DNC Pneumatic Cylinders product

Place of Origin : China

Brand Name : XINYAN

Model Number : DNC80x200

Contact Now

•Application of new seal material and buffer structure

•Low start pressure

•Stable operation

•Fine tightness

Long service life

Energy conservation and environmental protection, can recycle

•Beautiful appearance

•Widely used in automatic devices, e.g. light industry, chemical industry, textile, electron,machinery, etc

ISO6431 DNC Pneumatic Cylinders

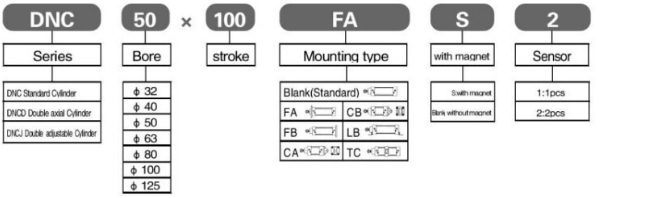

DNC

PPV

Model

DNC: Fixed Type

DNCF: With Buffer Type

PNC: Micky Mouse Barrel

Bore

Stroke

Buffer

Blank: Non

Buffer

PPV: Attach

Buffer

Magnet Code

Blank: Standard

Type

A: Inside Magnet

Fixed Type

Blank:Basic Type

LB: Front and

Back Fixed Type

FA: Front Cover

Fixed Type

SDB: Back Cover

Swinging Type

S2:Double Piston Rod

K2: Lengthen Out Screw

K3:Front in Screw Thread

K5:Out Standard Screw Thread

K8:Lengthen Riston Rod

Bore ( mm )	32	40	50	63	80	100
Motion Pattern	Filtered Air
Working Medium	Double Action
Compression Pressure	1.5MPa
Max.Operating Pressure	1.0MPa
Min.Operating Pressure	0.1MPa
Buffer	Air Buffer ( Standard )
Ambient Temperature	5~60℃
Operating Speed	50~500mm/s
Margin of Stroke Error (mm)	0~250+1.0 251~1000 +1.5 1001~1500 +2.0
Operating Life	Not Less Than 4000Km
Lubricate	Not Necessary
Port Size	1/8”	1/4”		3/8”	1/2”

ISO6431 DNC Pneumatic Cylinders

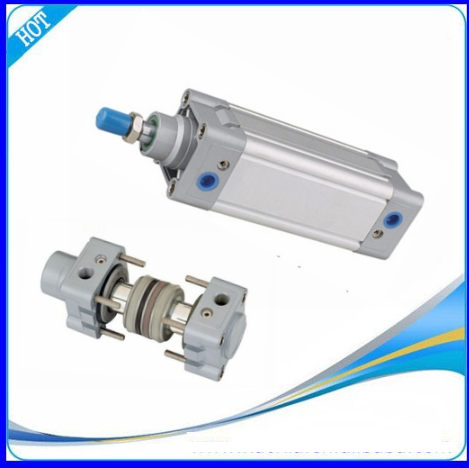

ISO6431 DNC Pneumatic Cylinders Images
